Product Details
Place of Origin: China
Brand Name: HYZONT
Certification: CCC
Model Number: LMD-V92/V04
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiated sale
Packaging Details: wooden case
Delivery Time: 15 Days after Payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500pcs a year
Short retractable soot blower
Short retractable soot blower are normally installed in the negative pressure area of the boiler, in this case there would be enough air absorbed into the boiler, and make good sealing effect of the wall box and soot blower collector.
Product Details

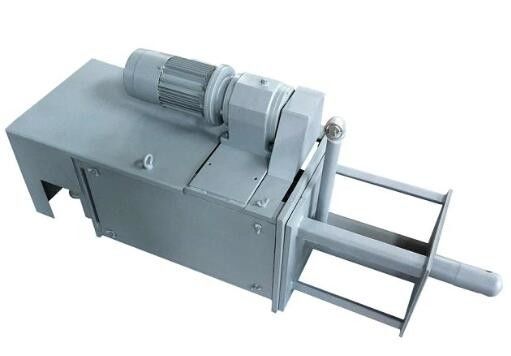

LMD-V92/V04 Short Retractable Furnace Soot blower:
| Soot blowing medium | Steam |
| Application field | Furnace water wall field |
| Maximum steam temperature | 500℃ |
| Steam consumption | 60-110kg/min |
| Blowing time | 11-60s |
| Blowing angle | 30-360° |
| Effective blowing radius | 3.5m |
| Recommended blowing pressure | 0.8-1.5Mpa |
| Total weight | 140kg/165kg |
| Valve body material | Cr - Mo steel |
| Nozzle material | Heat-resisting stainless steel |
| Companion flange | DN80 PN63 DIN2546 Standard |
Description:
Short retractable soot blower LMD-V04/V92 are normally installed in the negative pressure area of the boiler, in this case there would be enough air absorbed into the boiler, and make good sealing effect of the wall box and soot blower collector. If with positive pressure boiler, it need to equip the special positive pressure wall box, we can provide both of them to meet your requirement.
LMD-V04 soot blower is used for power plant boiler ash blowing in the water wall field, which is the previous design of LMD-V92 soot blower, with smaller size. It’s very convenient for plant side to install and maintain, no need the special suspension, and occupy less space.
Design Features:
1. Compact structure
2. Easy to maintain.
3. Manual operation
4. Perfect protection.
