Product Details
Place of Origin: USA
Brand Name: Wilcoxon
Certification: CE
Model Number: Model 797
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiated sale
Packaging Details: Standard
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set/year
Wilcoxon Model: |
Model 797 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5% |
Frequency Response ± 3 DB, Hz: |
Dynamic Vibration (IEPE) |
Resonance Frequency: |
1 Hz - 12,000 Hz |
Max Temperature: |
120°C |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |
Wilcoxon Model: |
Model 797 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5% |
Frequency Response ± 3 DB, Hz: |
Dynamic Vibration (IEPE) |
Resonance Frequency: |
1 Hz - 12,000 Hz |
Max Temperature: |
120°C |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |

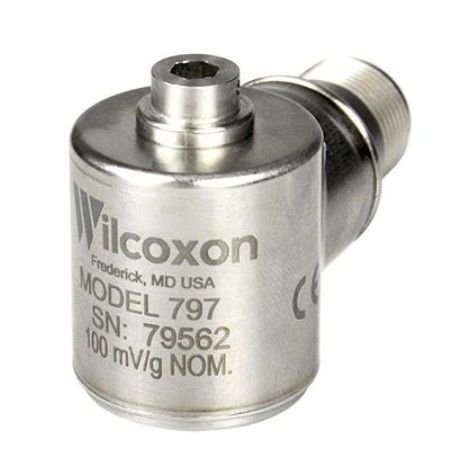

High performance general purpose accelerometer, 100 mV/g; IEPE accelerometer,±5% sensitivity tolerance
High-performance, general purpose, IEPE accelerometer, 100 mV/g sensitivity, ±5% sensitivity tolerance, wide frequency response, low profile with side exit 2-pin MIL-C-5015-style connector
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±5 % |
| Frequency response, ±3dB | 1 Hz - 12,000 Hz |
| Mounting Thread | 1/4-28 captive socket head screw |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Side exit |
| Full-scale range | 80 g peak |
| Resonance frequency | 26 kHz |
| Temperature range | -50°C to +120°C |
| Weight | 138 grams |
| Hazardous area approvals | Non-approved; approved models available |
