Product Details
Place of Origin: USA
Brand Name: Wilcoxon
Certification: CE
Model Number: Model 997
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiated sale
Packaging Details: Standard
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set/year
Wilcoxon Model: |
Model 997 |
Sensitivity: |
10 MV/g |
Sensitivity Tolerance: |
±10 % |
Frequency Response ± 3 DB, Hz: |
0.5 Hz - 29,000 Hz |
Resonance Frequency: |
45 KHz |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |
Wilcoxon Model: |
Model 997 |
Sensitivity: |
10 MV/g |
Sensitivity Tolerance: |
±10 % |
Frequency Response ± 3 DB, Hz: |
0.5 Hz - 29,000 Hz |
Resonance Frequency: |
45 KHz |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |

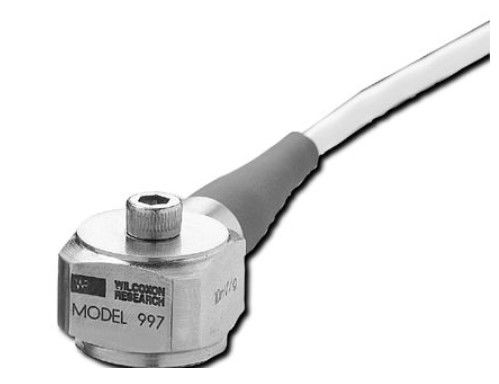

High frequency accelerometer, 10 mV/g sensitivity, ±10% sensitivity tolerance, 500 g range, low profile with side exit integral cable, ring type with 8-32 thread captive mounting screw
High frequency accelerometers are used on machinery with gear mesh or small bearings, such as high-speed machine tool spindles and compressors. At high frequencies, there is little vibration in terms of displacement and velocity, however tremendous amounts of acceleration amplitudes may be present. It is not uncommon for vibration amplitudes on a very high speed gearbox to exceed 80 g peak prior to failure. High frequency accelerometers with low voltage sensitivity will prevent sensor overload from these high amplitudes. The 10 mV/g sensitivity is commonly used due to its high amplitude range which can prevent sensor overload. Whereas a 100 mV/g accelerometer may overload at 50g peak, a 10 mV/g sensor will measure to 500g peak.
| PARAMETER | VALUE |
|---|---|
| Sensitivity | 10 mV/g |
| Sensitivity tolerance | ±10 % |
| Frequency response, ±3dB | 0.5 Hz - 29,000 Hz |
| Mounting thread | 8-32 tapped hole |
| Connector style | Integral cable |
| Connector orientation | Side exit |
| Full-scale range | 600 g peak |
| Resonance frequency | 45 kHz |
| Temperature range | -50°C to +120°C |
| Weight | 35 grams |
| Hazardous area approvals | Non-approved |
