Product Details
Place of Origin: USA
Brand Name: Wilcoxon
Certification: CE
Model Number: Model 797-6
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiated sale
Packaging Details: Standard
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set/year
Wilcoxon Model: |
Model 797-6 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±10 % |
Frequency Response ± 3 DB, Hz: |
1 Hz - 11,000 Hz |
Resonance Frequency: |
30 KHz |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
-50°C To +150°C |
Mounting: |
1/4-28 UNF Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |
Wilcoxon Model: |
Model 797-6 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±10 % |
Frequency Response ± 3 DB, Hz: |
1 Hz - 11,000 Hz |
Resonance Frequency: |
30 KHz |
Bias Output Voltage: |
Bias Output Voltage |
Temperature Sensor Output Sensitivity: |
-50°C To +150°C |
Mounting: |
1/4-28 UNF Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |

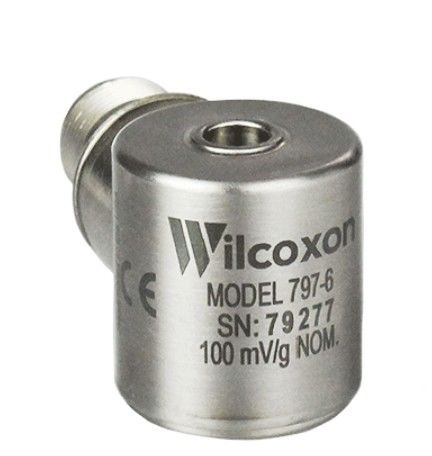

High temperature accelerometer, operation to 150°C/302°F, 100 mV/g sensitivity, ±10% sensitivity tolerance, low profile with side exit 2-pin MIL-C-5015-style connector, case isolated
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±10 % |
| Frequency response, ±3 dB | 1 Hz - 11,000 Hz |
| Mounting thread | 1/4-28 captive socket head screw |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Side exit |
| Full-scale range | 50 g peak |
| Resonance frequency | 20 kHz |
| Temperature range | -50°C to +150°C |
| Weight | 145 grams |
| Hazardous area approvals | Non-approved |
