Product Details
Place of Origin: USA
Brand Name: Wilcoxon
Certification: CE
Model Number: Model 797R
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiated sale
Packaging Details: Standard
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set/year
Wilcoxon Model: |
Model 797R |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5 % |
Frequency Response ± 3 DB, Hz: |
1 Hz - 15,000 Hz |
Resonance Frequency: |
26 KHz |
Temper To +150°Cature Sensor Output Sensitivity: |
-50°C To +120°C |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |
Wilcoxon Model: |
Model 797R |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5 % |
Frequency Response ± 3 DB, Hz: |
1 Hz - 15,000 Hz |
Resonance Frequency: |
26 KHz |
Temper To +150°Cature Sensor Output Sensitivity: |
-50°C To +120°C |
Mounting: |
1/4-28 Tapped Hole |
Output Connector: |
MIL-C-5015, 2-pin |
Compliance: |
CE •[CSA/ATEX/IECEx] |

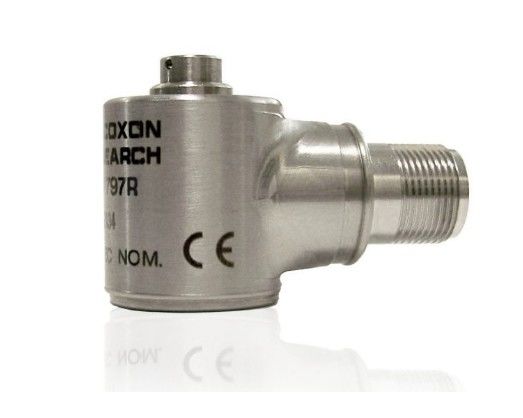

Accelerometer, radiation-resistant (1x10-7 RADs exposure limit), 100 mV/g sensitivity, ±5% sensitivity tolerance, low profile with side exit MIL-C-5015-style connector, case isolated
Accelerometers, cable assemblies, and mounting accessories with radiation resistance up to 1x107 RADs make vibration monitoring possible on critical machines in nuclear power plants. The 797R high performance accelerometer is suitable for gearboxes and other vibration monitoring applications that benefit from high frequency analysis.
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±5 % |
| Frequency response, ±3 dB | 1 Hz - 15,000 Hz |
| Mounting thread | 1/4-28 captive screw |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Side exit |
| Full-scale range | 50 g peak |
| Resonance frequency | 26 kHz |
| Temperature range | -50°C to +120°C |
| Weight | 135 grams |
| Hazardous area approvals | Non-approved |
